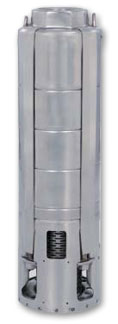

6” Stainless steel Borewell Submersible Pump - (TSS)

Stainless steel Borewell Submersible Pump Stainless steel Borewell Submersibles

Product Features
Light weight, compact design and easy to install
AISI 304 graded impellers and stage housings for corrosion resistance
Efficient hydraulic design with less power consumption
Built in NRV with minimum friction.
Inside strainer construction and water lubricated rubber bushes
Easily rewindable Squirrel cage motor of water-cooled, designed for 350 - 440 V, 50 Hz, AC power supply
Stainless steel stator shell to prevent rust formation
Specially designed carbon thrust bearing
High quality seal rings and sand guards to protect motor from sand entry
High quality water-resistant polymer insulated wires for longer life even under adverse voltage conditions
Pressure diaphragm to compensate excess pressure due to heating up of filled water

Material Of Construction
Part Name Material Part Name Material
Impeller AISI 304 Motor body AISI 304
Bowl AISI 304 Bearing housing CI FG 200
Pump Shaft AISI 304 / 431 Motor shaft 55C8
Sleeve AISI 410 Journal bush LTB-4
Bearing Bush NBR Thrust bearing AISI 420-Carbon
Non return valve AISI 304 Winding wire Polywrapped copper

Applications
» Irrigation (Drip / Sprinkler)
» Municipal water supply
» Dewatering of mine
» Industrial water supply
» Cooling water circulating systems
» Water treatment
» Fire fighting
» Aquaculture
» Salt fields.
