DESIGN
BENEFIT |
|
MODEL |
: |

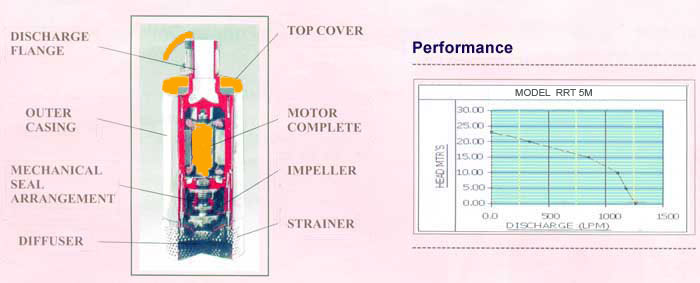

RRT 5M |
|
|
|
|
|
MATERIAL |
: |
1) Oil casing /
Outer casing / strainer SS304 Top / Bottom
Bracket - Die Casting of
aluminum alloy for Reduce corrosion in
marine application |
|
|
|
|
|
ROTOR |
: |
Rotor shaft SS431 for
better magnetic result |
|
|
|
|
|
IMPELLER |
: |
SS410 (Hardened) in
abrasive application SS304 in marine application |
|
|
|
|
|
MECHANICAL SEAL |
: |
Inner / Outer twines Tungsten carbide
.mechanical seal
At tandem at pressure compensate oil bath for increasing life |
|
|
|
|
|
MOTOR DATA |
: |
Motor output power: 3.7 KW 5 HP Current Rating at 415 V : 8.0 Amps.
Direct On Line Start,2 Pole Induction continuous rated motor 380 Volts --
415Volts/440Volts--- 460 Volts, 50/60 HZ., 3 Phase, Rated Speed
-2850/3450 RPM
(Approx ) AC Supply (Voltage/Frequency Combination As per
Requirement) With
built in motor Protection of Thermal Protector Power Cable in PVC
Insulated,
Flexible , Double Sheathed, oil & Water proof having copper
conductor of 6 cores
of size : 4*2.5 sq. mm & 2* 1 sq. mm of length 15 Meters.
Class of Insulation 'F' (1550 C )
|
| |
|
|
HYDRAULIC
FEATURES |
|
The pump is designed for pumping liquid temperature of 40 C & ,ph value
in
between 6 -- 9, max. specific Gravity 1.1 & It is working of
s submersible
depth of max. 15 meters & min. 100 mm At field adjustable
nitrile Rubber molded
Diffuser for optimise efficiency through out the life of the Pump.
|
|
|
|
|
|
RUBBER PART |
: |
Nitrile rubber |
|
|
|
|
|
HARDWARE |
: |
S. Steel 304 |
