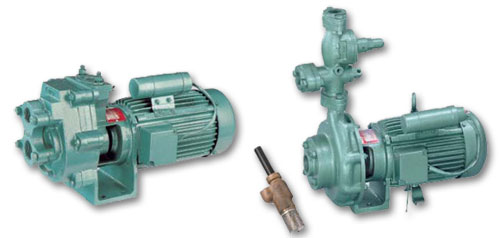

Single phase Horizontal Jet Monoblock Pumps - TDSJ / HCSJ

Single phase Horizontal Jet Monoblocks
rokade pumps
Product Features
rokade pumps Easy installation and low operating cost.
rokade pumps TDSJ - Can also be installed vertically.
rokade pumps Designed to operate at very low voltage.
rokade pumps Easy installation and simple maintenance.
rokade pumps Can be installed near the borewell or offset in an adjacent building without separate pump house.
rokade pumps Silent operation and steady flow of water.
rokade pumps Pressure valve for easy adjustment of pump output matching with the borewell yield
rokade pumps Choice of different jet units for varying depths and discharges.
rokade pumps Easily accessible for servicing and overhauling.
rokade pumps Dynamic balancing of rotor and impellers ensure vibration free performance and longer bearing life.
rokade pumps Squirrel cage motor of TEFC type designed to operate in a wide range of voltage variation 180 - 240 V, 50 Hz, AC power supply.

Material Of Construction
Part Name Material Part Name Material
Impeller CI FG 200 / Gunmetal Mechanical seal Carbon - Ceramic
Casing CI GR 180 Motor body CI GR 180
Sleeve AISI 410 (1.5 hp) Shaft 45C8 / AISI 410
Flanges CI GR 180 Winding wire Enameled copper

Applications
» Pumping water from deep borewell for water supply to houses
» Residential Colonies
» Factories
» Multistoried buildings and apartments
